1.제품 소개

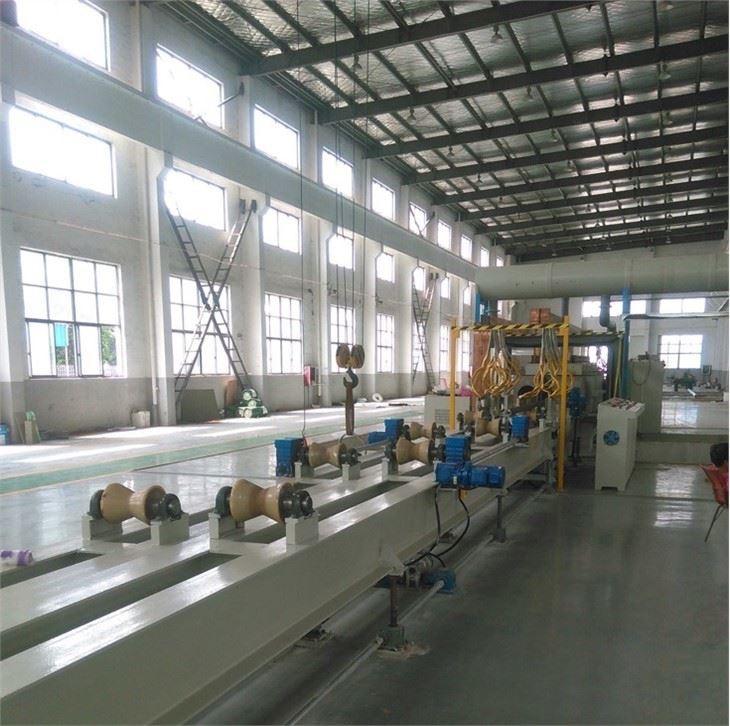

The device is used for coating the outer surface of the round bar material (slender shaft) by passing the bar through. There are automatic front feeding device, plating pre-treatment device, chrome plating device, automatic rear unloading device, chromatic acid mist recycling device and electric control device in this system.
The system is energy saving and environmental protection to make products with the discharge of waste water chromium free. The washing water still flows into the master groove before and after the work-piece (processing target) is in the groove. Supplement the plating solution for its evaporation and decomposition decreasing. The plating tank and circulating tank ventilation are all channeled to chromium mist recycling and purification separation device. The detained chrome mist and washing water are guided to main tank to supply for the loss of plating evaporation, which saves energy and at the same time, protects the environment. Chromium mist recycling and purification tower ensure the quality of the purification effect, and at the same time achieve zero discharge of electroplating waste-water.
The anode plate distance between the work-pieces is relatively small. The work-piece passes through the imitation anode and moved in with even speed, which guarantees the evenness of plating coating both in circumferences of the bar, or in the direction of the axis of the bar.
The electroplating layer adopts the multi-layer electroplating chrome technology to realize the chrome plating chrome plating technical problem, which greatly improves the electroplating efficiency of the equipment and the corrosion resistance of the chrome layer.
The device adopts two-channel through-plating technology, which can achieve two pieces of workpiece at the same time continuous electroplating, greatly improving the efficiency.
The device adopts special plating process and greatly improves the corrosion resistance of the plated work piece. The NSS test can reach over 80 hours for 25um thickness plating. For normal plating, it guarantees 120 hours.
2. 주요 매개변수
3. 장비 구성
로딩 언로딩 프레임, 가이드 롤러 메커니즘
사전{0}도금 장치 및 전기도금 시스템
전도성 시스템
환기 시스템
전기 제어 시스템
4.포장
우리는 수송 포장 수출에 있는 mucerience가 있습니다. 다중 보호 조치를 취하는:
5. 회사 프로필
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
